Stainless Steel Reversed Dutch Weave Wire Screen Plastic Automatic Extruder Screen Filter Disc

Stainless Steel Reversed Dutch Weave Wire Screen Plastic Automatic Extruder Screen Filter Disc

الاسم التجاري: Comesh
رقم الطراز: سيارة-0065
الـ MOQ: 100 قطعة
السعر: قابل للتفاوض
شروط الدفع: / تي تي، ويسترن يونيون،
القدرة على التوريد: 800 لفات في الشهر
معلومات مفصلة
مكان المنشأ:
الصين
إصدار الشهادات:
SGS
اسم:
الفولاذ المقاوم للصدأ عكس الهولندية نسج سلك الشاشة البلاستيك التلقائي الطارد مرشح الشاشة القرص
مادة:
الفولاذ المقاوم للصدأ 201،304،316 لتر
القطر:
5 سم، 10 سم، 12 سم
مش:
72/15,152/30,152/24,260/40 شبكة
سمات:
جودة عالية ومتانة وقوة
طلب:
آلة سحب الأسلاك البلاستيكية، آلة صب الفيلم وآلة طلاء الفيلم
يكتب:
شاشة شبكية، قرص مرشح شبكي
الاستخدام:
تذوب الترشيح في صناعة البلاستيك
عينة:
متوافرة، عينة مجانية
تفاصيل التغليف:
ورق الكرافت داخل ، حالة الخشب الرقائقي بالخارج
إبراز:

Stainless Steel Dutch Weave filter disc

,

Automatic extruder screen filter

,

Reversed weave wire mesh disc

وصف المنتج

Stainless Steel Reversed Dutch Weave Wire Screen Plastic Automatic Extruder Screen Filter Disc





Stainless Steel Reversed Dutch Weave Wire Screen Plastic Automatic Extruder Screen Filter Disc Advantages:



plastic extruder filters are resistant to acids, alkalis, corrosion, and high temperatures.

plastic extruder filter mesh has more efficient extruder screening and better filtration performance.

extruder filter screens has Wide range of mesh sizes for different filtration requirements and grades.

mesh belt for screen changer isSuitable for various automatic screen changers.



Applications of Stainless Steel Reversed Dutch Weave Wire Screen Plastic Automatic Extruder Screen Filter Disc



Continuous belt screens are widely used in various screen changers to filter impurities from polymer extrusion processes without interrupting the process.

plastic extrusion filters are primarily used for filtering cast and blown films, composites, resin production, nonwovens, and specialty materials.

plastic extruder black wire mesh filter is widely used in the plastics industry for plastic extrusion and melt filtration, in continuous belt screen changers for PP, PS, PVC, PET, PE, ABS, and PMMA.





Description:



Name Stainless Steel Reversed Dutch Weave Wire Screen Plastic Automatic Extruder Screen Filter Disc
Width 10cm,12cm,12.7cm,15cm,20cm
Mesh 260/40mesh,72/15mesh,152/30mesh,152/24mesh
Weave style Reverse Dutch Weave
Keywords Automatic Band Filter Screen Belt/ Reverse Dutch Weave mesh belt





Application:



1. It is suitable for the filtration of plastic wire drawing machine, casting film machine and film coating machine, such as
plastic woven bag, plastic film and so on.
2. In acid, alkali environment conditions sieving and filtering.
3. Petroleum industry as mud mesh.
4. Chemical fiber industry as screen mesh.

5. Plating industry as acid cleaning mesh.
6. Widely used in aerospace, cachinery, plastic products,research and plastic melt filter,molding machine belt type filter conveyor industries.







Mesh
Wire Diameter (mm)
Thickness (mm)
Width (cm)
45x15
0.45x0.6
1.75
8-85
72x15
0.45x0.55
1.7
8-85
120x16
0.35x0.45
1.36
8-85
132x17
0.3x0.45
1.3
8-85

152x24
0.3x0.40
1.2
8-85

160x18
0.28x0.45
1.27
8-85

200x40
0.15x0.27
0.7
8-130

260x40
0.15 x0.27
0.65
8-130

300x40
0.15 x0.27
0.65
8-130

360x40
0.13 x0.27
0.6
8-130

Special specification we can produce according to customer's requirements



Products show:

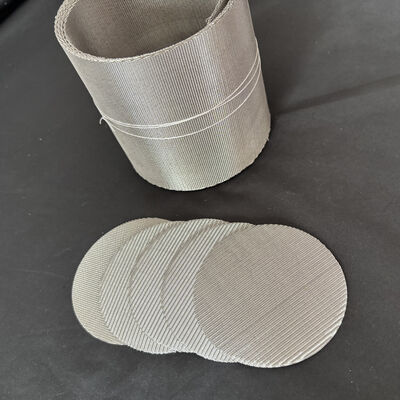

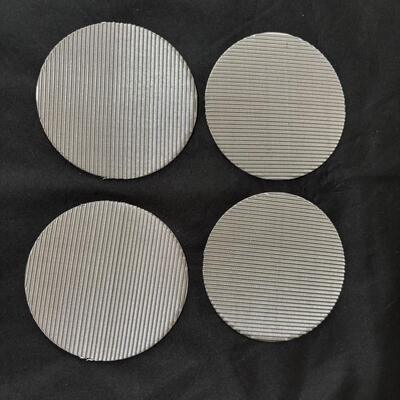

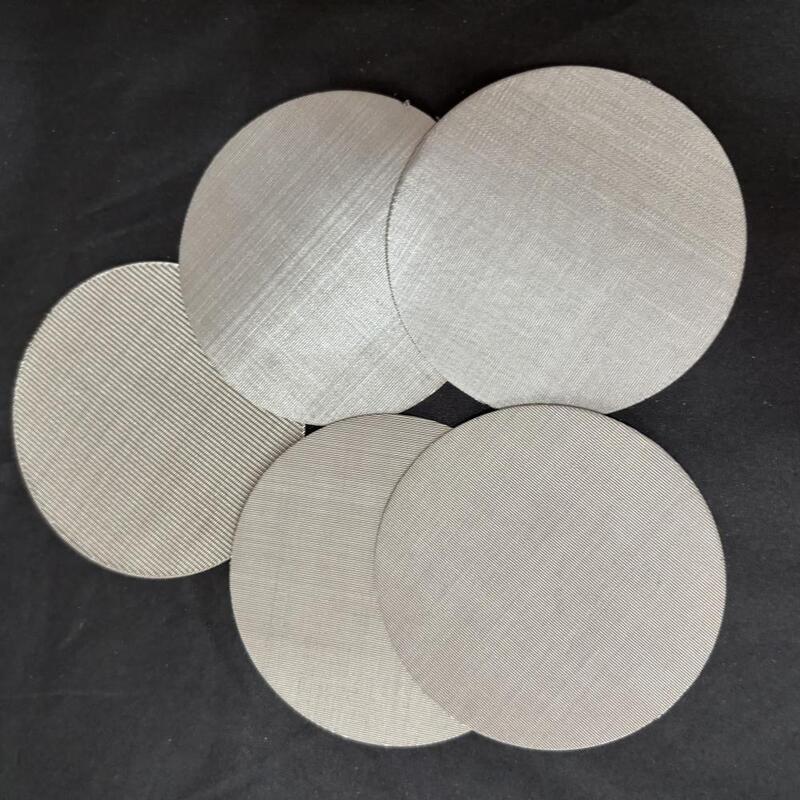

Stainless Steel Reversed Dutch Weave Wire Screen Plastic Automatic Extruder Screen Filter Disc 0



Stainless Steel Reversed Dutch Weave Wire Screen Plastic Automatic Extruder Screen Filter Disc 1



Stainless Steel Reversed Dutch Weave Wire Screen Plastic Automatic Extruder Screen Filter Disc 2









Stainless Steel Reversed Dutch Weave Wire Screen Plastic Automatic Extruder Screen Filter Disc 3



Stainless Steel Reversed Dutch Weave Wire Screen Plastic Automatic Extruder Screen Filter Disc 4



Stainless Steel Reversed Dutch Weave Wire Screen Plastic Automatic Extruder Screen Filter Disc 5



Stainless Steel Reversed Dutch Weave Wire Screen Plastic Automatic Extruder Screen Filter Disc 6
