شبكة أسلاك الفولاذ المقاوم للصدأ
Created with Pixso.

Reverse Dutch Weave Stainless Steel Wire Auto Metal Filter Screen Mesh Belt with High Anti-rust for Plastic Extruder

Reverse Dutch Weave Stainless Steel Wire Auto Metal Filter Screen Mesh Belt with High Anti-rust for Plastic Extruder

الاسم التجاري: Comesh
رقم الطراز: سيارة-0025
الـ MOQ: 50 متر
السعر: قابل للتفاوض
شروط الدفع: / تي تي، ويسترن يونيون،
القدرة على التوريد: 800 لفات في الشهر
معلومات مفصلة
مكان المنشأ:
الصين
إصدار الشهادات:
SGS
اسم:
عكس الهولندية نسج الفولاذ المقاوم للصدأ سلك السيارات المعدنية تصفية الشاشة حزام شبكة مع ارتفاع المضا
مادة:
الفولاذ المقاوم للصدأ 201،304،316 لتر
عرض:
10 سم ، 12 سم ، 12.7 سم ، 15 سم ، 20 سم
مش:
72 / 15،152 / 30،152 / 24،260 / 40
سمات:
جودة عالية ومتانة وقوة
طول:
10 أمتار ، 15 مترا ، 20 مترا
طلب:
آلة سحب الأسلاك البلاستيكية، آلة صب الفيلم وآلة طلاء الفيلم
يكتب:
شاشة شبكية، قرص مرشح شبكي
الاستخدام:
تذوب الترشيح في صناعة البلاستيك
تفاصيل التغليف:
ورق الكرافت داخل ، حالة الخشب الرقائقي بالخارج
إبراز:

Reverse Dutch Weave stainless steel wire mesh

,

Auto metal filter screen belt

,

Stainless steel mesh for plastic extruder

وصف المنتج

Reverse Dutch Weave Stainless Steel Wire Auto Metal Filter Screen Mesh Belt with High Anti-rust for Plastic Extruder



Continuous belt screens, refer to reverse dutch weave filter belts made of stainless steel wires. The continuous (automatic) belt screens are the innovation of extruder screens. They are used for screening impurities out of molten plastic. Used with screen changers, the automatic belt filter system allows continuous and uninterrupted production and high filtering performance in cast film and blown film production and other plastic filtering processes.



Continuous belt screens, refer to reverse dutch weave filter belts made of stainless steel wires. The continuous (automatic) belt screens are the innovation of extruder screens. They are used for screening impurities out of molten plastic. Used with screen changers, the automatic belt filter system allows continuous and uninterrupted production and high filtering performance in cast film and blown film production and other plastic filtering processes.





Description:



Name 201 304 Stainless Steel Reversed Twill Dutch Weave Wire Mesh Extruder Screen Belt Filter Belt for Continuous Screen Changer
Width 10cm,12cm,12.7cm,15cm,20cm
Mesh 260/40mesh,72/15mesh,152/30mesh,152/24mesh
Weave style Reverse Dutch Weave
Keywords Automatic Band Filter Screen Belt/ Reverse Dutch Weave mesh belt





Application:



1. It is suitable for the filtration of plastic wire drawing machine, casting film machine and film coating machine, such as
plastic woven bag, plastic film and so on.
2. In acid, alkali environment conditions sieving and filtering.
3. Petroleum industry as mud mesh.
4. Chemical fiber industry as screen mesh.

5. Plating industry as acid cleaning mesh.
6. Widely used in aerospace, cachinery, plastic products,research and plastic melt filter,molding machine belt type filter conveyor industries.




Advantage:

  • Continuous (automatic) belt filter has the resistance to acid, alkali, corrosion and high temperature.
  • More effective in extruder screening and better filtration performance.
  • Wide ranges of mesh sizes for different filtration requirements and grades.
  • Suitable for various automatic screen changers.
  • Uninterrupted replacement for effective production.





Mesh
Wire Diameter (mm)
Thickness (mm)
Width (cm)
45x15
0.45x0.6
1.75
8-85
72x15
0.45x0.55
1.7
8-85
120x16
0.35x0.45
1.36
8-85
132x17
0.3x0.45
1.3
8-85

152x24
0.3x0.40
1.2
8-85

160x18
0.28x0.45
1.27
8-85

200x40
0.15x0.27
0.7
8-130

260x40
0.15 x0.27
0.65
8-130

300x40
0.15 x0.27
0.65
8-130

360x40
0.13 x0.27
0.6
8-130

Special specification we can produce according to customer's requirements

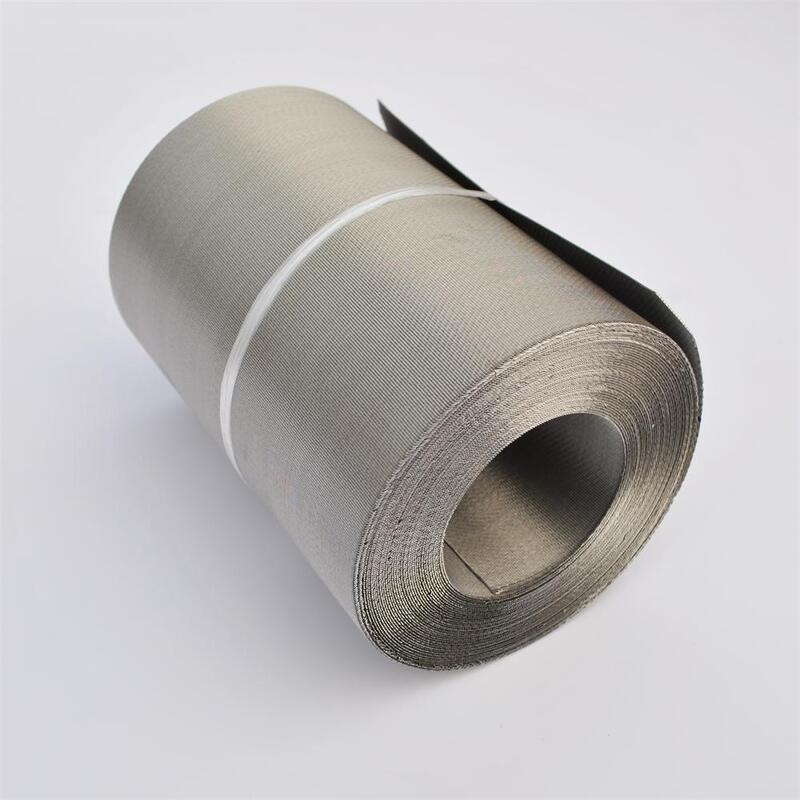

Products show:
