| الاسم التجاري: | COMESH |
| رقم الطراز: | سيارة-34 |
| الـ MOQ: | 1 متر مربع |
| شروط الدفع: | L / C، T / T، ويسترن يونيون، بايبال، ضمان التجارة |
| القدرة على التوريد: | 2000 متر مربع لكل ربع |

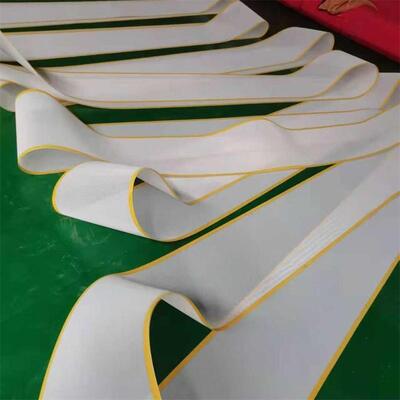

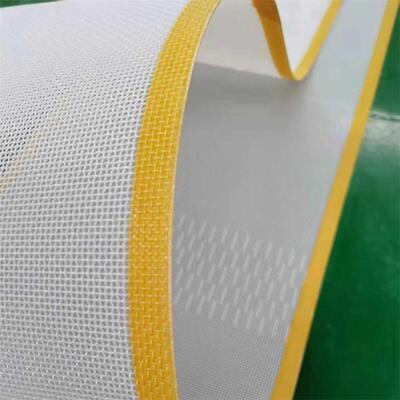

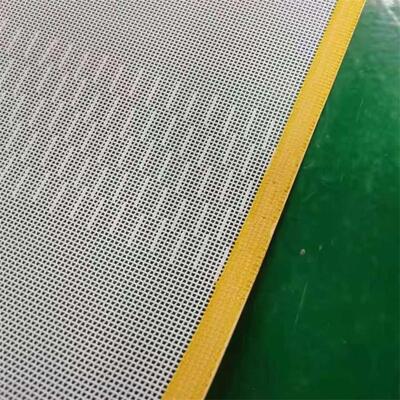

Customized Plain Woven Polyester Mesh Conveyor Belt for Paper Making Sludge Dewatering Dryer
The polyester linear screen cloth mesh belts cloth is made out by high viscosity Polyester monofilament yarn, and weaving in 1:1 plain weave to get uniform and defined mesh opening, which makes the polyester mesh belts in high separation efficiency and optimum filtration effects. Furthermore, our linear screen filter belts are all being thermal setting to get high lateral stability and optimum running properties. Our Screen’s linear screen polyester mesh belts have a wide range of aperture size to meet the various application respectively, blue and white color both available.
Advantage:
1) Excellent chemical, thermal and high permeability for easy cleaning
2) Food approval: food grade
3) Working temperature: +150°C to -75°C in dry conditions. 70°C+ in wet conditions
4) Precise aperture to achieve excellent filtration results and efficiency
5) Smooth running properties
6) Mesh opening 0.4mm-5.0mm available
7) Excellent chemical stability, Synthetic Fiber Chemical Properties Table
8) Excellent durability
9) Max. Width 6.0 M with hot melt edges
10) Clipper seam, pin rings, spiral rings, endless connection type are all available.
11) Various and plenty stock for fast delivery to save your time
Specification:
| Weaving Type | Model | Thread Diameter | Density(No.s/cm) | Strength ((N/cm) | Air Permeability (m3/m2h) | ||
| (mm) | |||||||
| Warp | Weft | Warp | Weft | ||||
| 2-shed plain weaving | 05802 | 0.75 | 0.8 | 4.7-5 | 4.8-5 | 940 | 20000 |
| 05102 | 1 | 1 | 4.7-5.2 | 4.3-5 | 1600 | 15000 | |
| 06702 | 0.7 | 0.7 | 8 | 7 | 1600 | 11000 | |
| 07102 | 0.7 | 1 | 6.6-7 | 4.3-4.6 | 1100 | 15000 | |
| 08552 | 0.55 | 0.55 | 7.5-8 | 8.5-9 | 850 | 850-6500 | |
| 09452 | 0.45 | 0.45 | 10 | 8.6 | 1600 | 16000 | |
| 09502 | 0.5 | 0.5 | 8.5-9 | 10-10.5 | 750 | 10000 | |
| 12502 | 0.5 | 0.5 | 13.5 | 8.5 | 1800 | 6500 | |
| 3shed plain weaving | 8603 | 0.5 | 0.6 | 10 | 9 | 1600 | 14000 |
| 8903 | 0.9 | 0.9 | 7.8-8 | 5-5.5 | 2100 | 7500-8500 | |
| 7803 | 0.7 | 0.8 | 8 | 8 | 1600 | 10000 | |
| 20353 | 0.3 | 0.35 | 22 | 14.5 | 1200 | 13000 | |
We are a professional manufacturer of polyester mesh belts, producing a wide range of specialized polyester mesh belts, including sludge dewatering mesh belts, paper forming mesh belts, paper drying mesh belts, tea withering mesh belts, belt filter press mesh belts, vacuum conveyor mesh belts, power plant desulfurization filter cloths, vacuum drying mesh belts, composite machine mesh belts, non-woven fabric mesh curtains, food drying conveyor mesh belts, and more. These products are widely used in MDF production, power plant desulfurization, tailings dry discharge, sewage treatment, juice pressing, and in industries such as papermaking, food, pharmaceuticals, and tea.
