حزام سير شبكة سلكية
Created with Pixso.

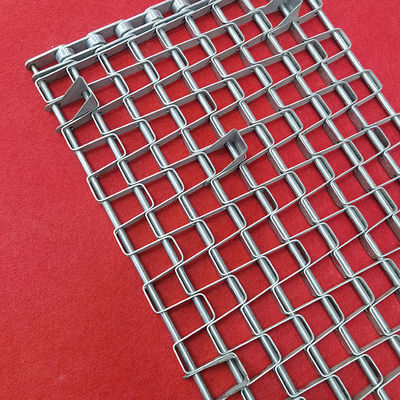

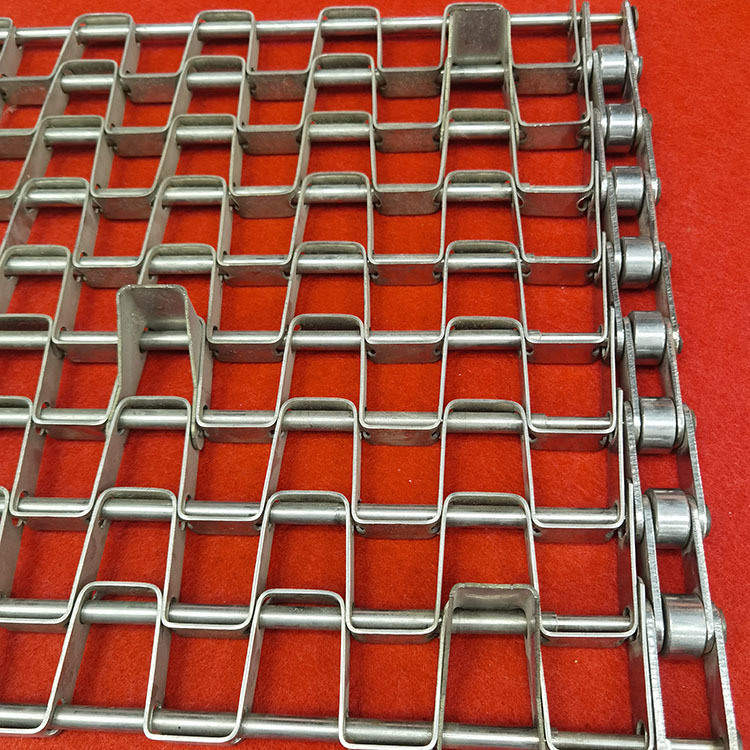

Heavy Duty Stainless Steel 316 Honeycomb Mesh Conveyor Belt with Baffle

Heavy Duty Stainless Steel 316 Honeycomb Mesh Conveyor Belt with Baffle

الاسم التجاري: PFM
رقم الطراز: PFM-CB356
الـ MOQ: 1meter
السعر: قابل للتفاوض
شروط الدفع: L/C ، T/T ، Western Union ،، PayPal ، ضمان التجارة
القدرة على التوريد: 300 متر شهريا
معلومات مفصلة
مكان المنشأ:
هيبي ، الصين
إصدار الشهادات:
SGS
مادة:
الفولاذ المقاوم للصدأ ، الصلب الكربوني
سلك مسطح الملعب:
25.4 مم
الملعب قضيب:
25.4 مم
قطر قضيب:
5.0 مم
حجم السلك المسطح:
1.2mm*14.1mm
عينة:
متاح
تفاصيل التغليف:
كيس من البلاستيك داخل وحالة الخشب الرقائقي بالخارج أو حسب حاجتك.
إبراز:

stainless steel 316 conveyor belt,honeycomb mesh conveyor belt,heavy duty wire mesh belt

,

honeycomb mesh conveyor belt

,

heavy duty wire mesh belt

وصف المنتج
Heavy Duty Stainless Steel 316 Honeycomb Mesh Conveyor Belt with Baffle
Description
Flat wire conveyor belt is also called honeycomb conveyor belt or flat plate conveyor belt. The flat plates are arranged in the form of lattice and joined with straight rods. Customers can request chains, side plates, or both attached to the belt's sides. The side plates prevent goods from falling, while chains drive the belt.
Specification
Material stainless steel, carbon steel
Width customized
Length customized
Flat wire pitch 12.7, 14, 15, 16, 18, 24, 25.4 mm
Rod pitch 13.7, 19.05, 25.4, 27 mm
Rod diameter 3.0, 4.0, 5.0 mm
Flat wire size 1.2x9.5, 1.2x14.1, 1.5x12.7, 1.5x14.1 mm
Features
  • Positive sprocket drive ensures stable running
  • Larger open area provides high air permeability
  • Easy to wash and maintain
  • Smooth surface carries unstable products securely
  • Suitable for curved conveyor applications (CFW)
Applications
  1. Conveyor machines
  2. Frying facilities
  3. Annealing furnaces
  4. Refrigeration facilities
  5. Cleaning machines
  6. Drying ovens
  7. Food transport
  8. Baking
  9. Cooling and freezing
  10. Steaming and drying
